JR-7S

JR-7S

Single fibre thermal jacket remover

JR-7S

Simple, Superior, Single Fibre Stripping

Features

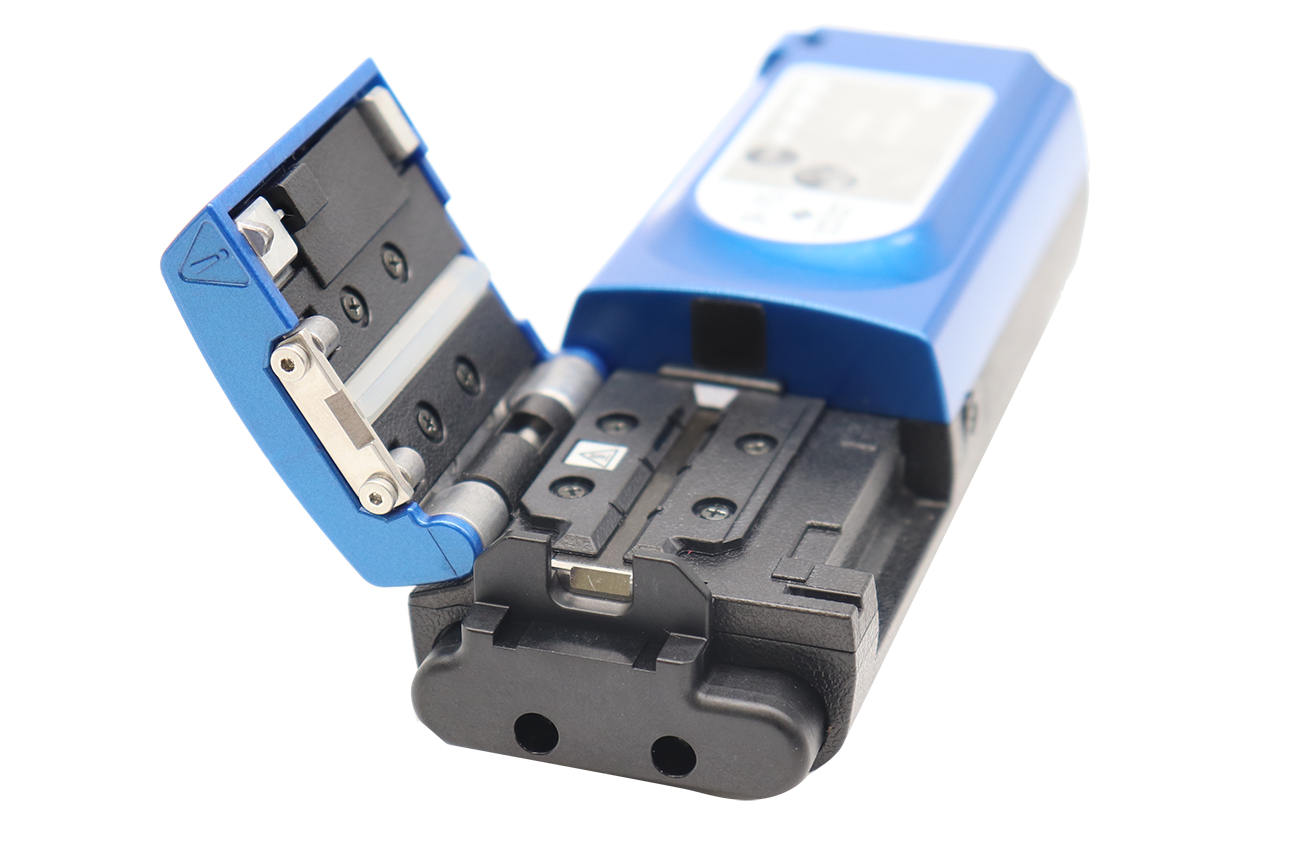

Feature 01

Simple holder-free operation

Fibre guide to simplify operation without holders

JR-7S

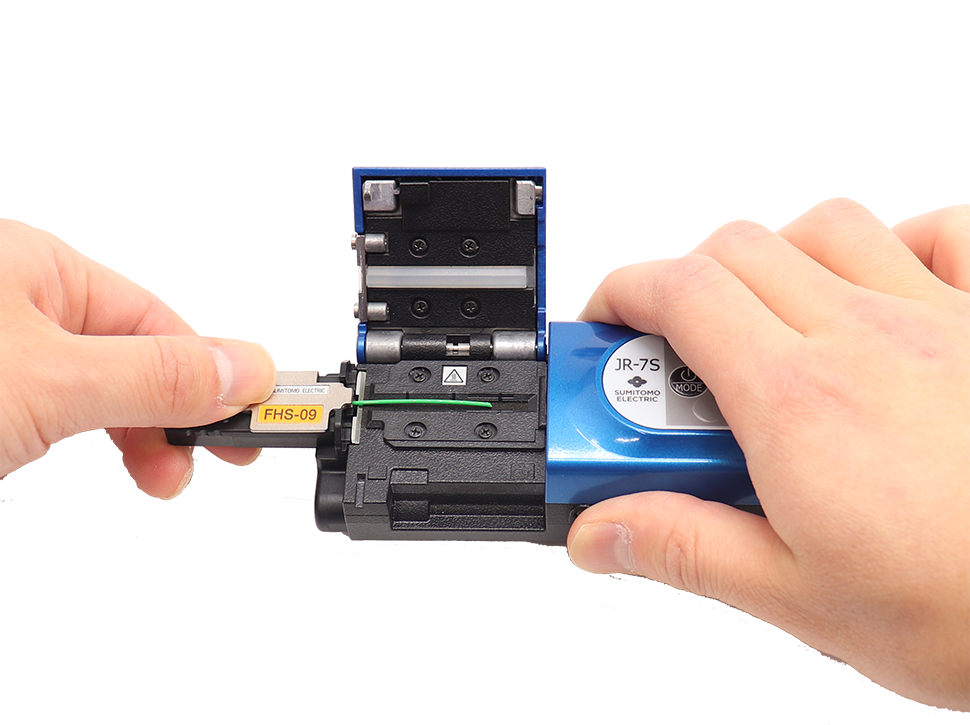

Feature 02

Compatible with fibre holders

Secure holder-based operation for fast, safe work

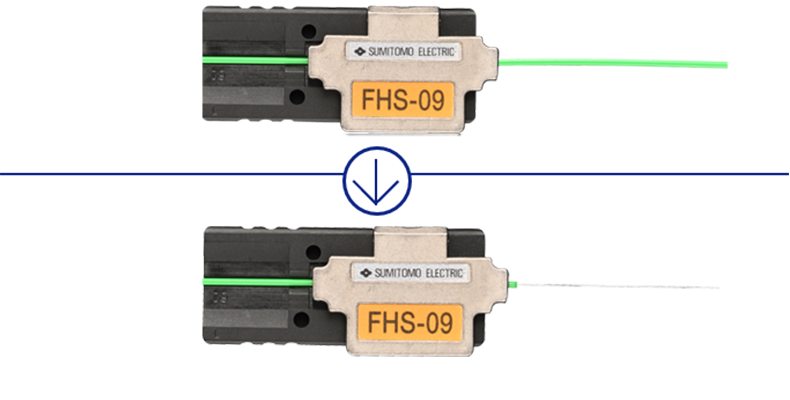

Feature 03

Strip 900um coating in 1 step

900um coated fibre stripping made easy

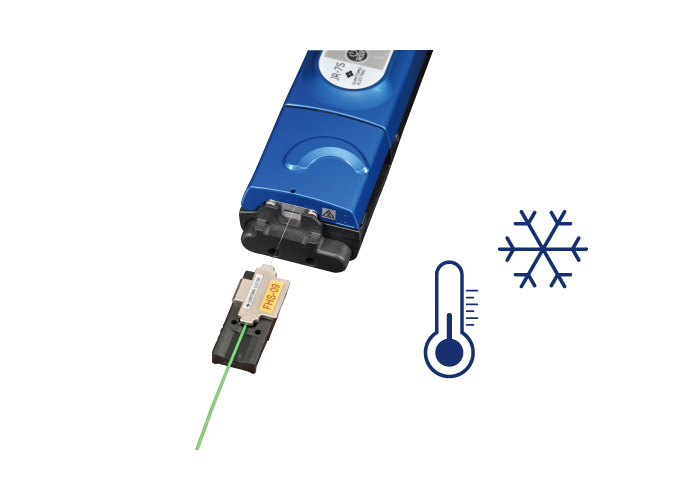

Feature 04

Consistent even in cold conditions

Prevents fibre breakage in low-temperature environments

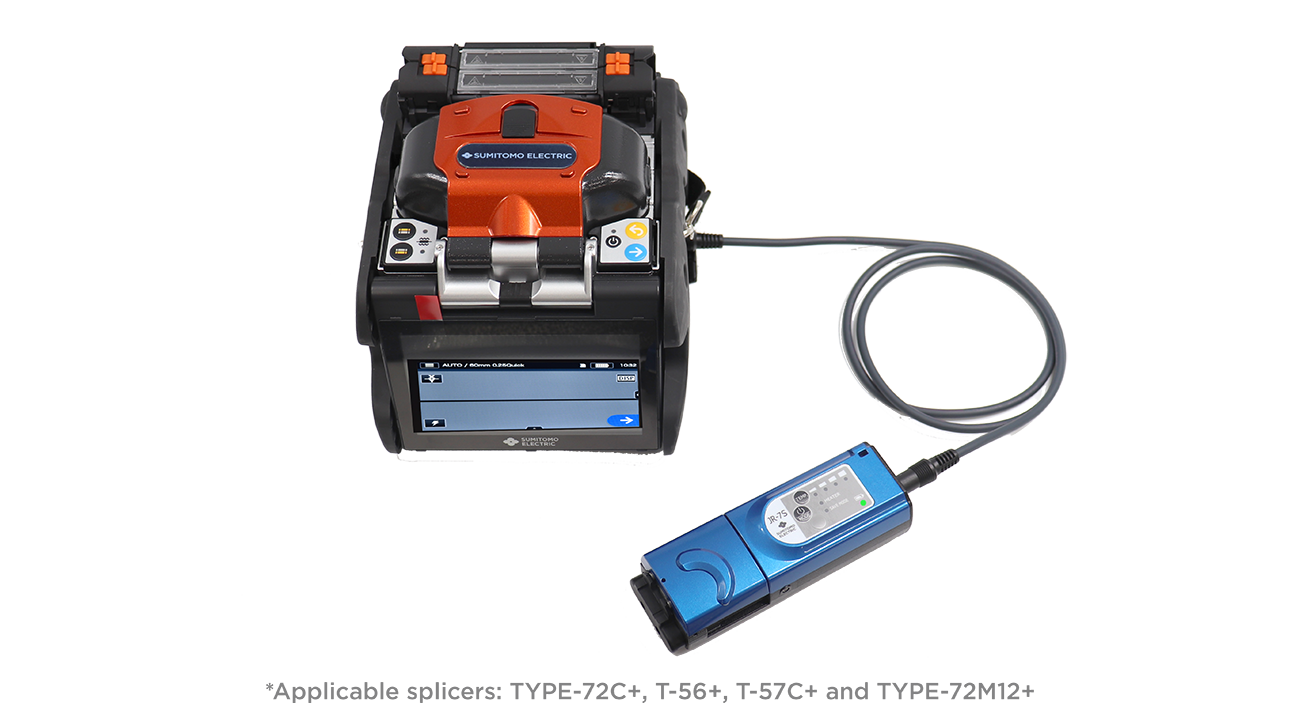

Feature 05

Flexible charging options

Charge from a power adaptor or your fusion splicer*

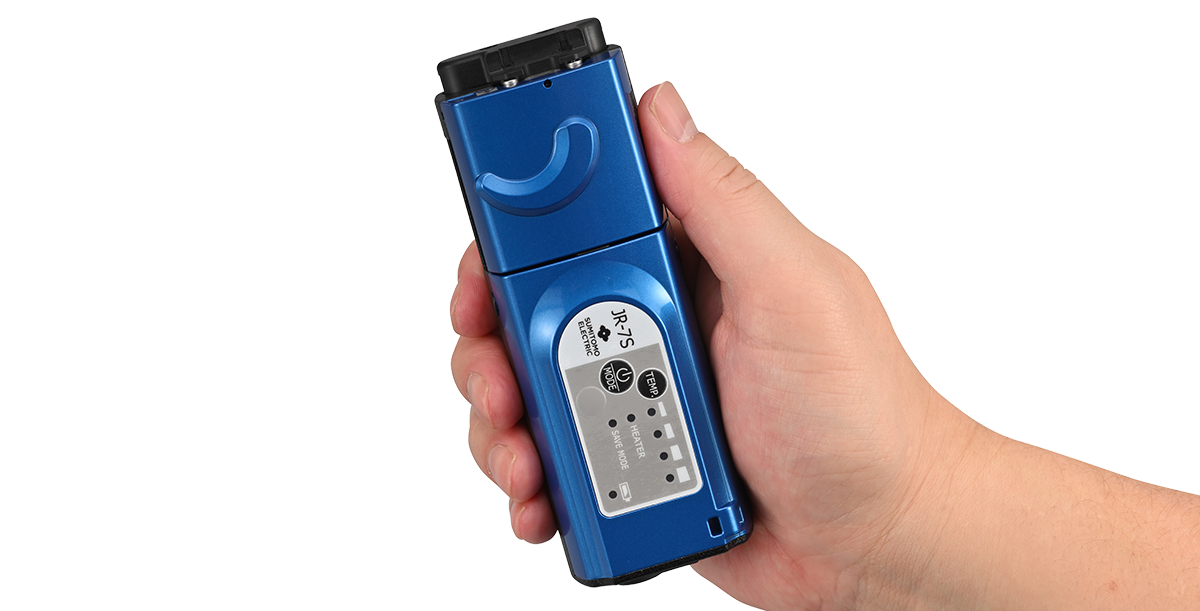

Feature 06

Compact, Ergonomic Design

Easy gripping, effortless fibre stripping with minimal force

Specs

Applicable Optical Fibres

  • Fibre count: Single fibre
  • Coating material: UV cured resin
  • Coating thickness: φ250 ~ 900um
  • Cladding diameter: 125um
  • Coating removal length: MAX. 35mm　

Function

  • Temperature setting: 4 positions: approx. 80 ~ 140°C
  • Power saving function: NORMAL MODE and POWER SAVE MODE are switchable
  • Battery level check: 4-step LED display

Dimensions and battery

  • Dimensions: 46(W) × 128(D) × 37.5(H) mm
  • Weight: Approx. 200g (including battery)
  • Battery Capacity: Nominal capacity 1940mAh (operation with BU-6A battery)

Standard Package

  • JR-7S Thermal Jacket Remover with BU-6A battery installed
  • DC Cord: PC-B(C) (for power supply from Sumitomo Electric fusion splicers*1)
  • Precaution card (English)
  • Soft carrying case for JR-7S
  • Cleaning brush
  • Allen key(1.3mm)
  • Strap

Additional Accessories

  • Replacement Blades: JR-6BL (pair)
  • Battery: BU-6A
  • AC Charging Adaptor: ADC-1220S
