JR-7

JR-7

Equipped with a variety of new features inspired by customer feedback, including LED lighting and vibration function.

JR-7

Packed with a wide range of innovative features
to revolutionise on-site operations.

New Technology

Easily and reliably removes coating with minimal force.

Ergonomic design ensures easy force
transmission from any grip.

Redesigned blade pivot enables approx. 30% less stripping force
vs. previous models.

Features

Feature 01

LED Lighting

Allows for work in dark conditions

Feature 02

Vibration Function

Vibration signals completion of heating.

Feature 03

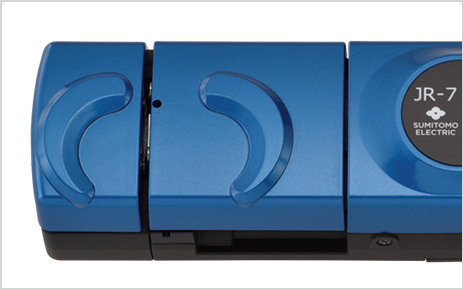

Ergonomic Design

Allows swift fibre coating removal with minimal effort.

Feature 04

Holder Stand Lock

Holder stand is secured for better operability.

Feature 05

New and Improved Flat Surface

Makes it easy to clean off the stripped coating.

Specs

Applicable Optical Fibers

  • Fibre count and coating thickness: Single fibre...φ0.2 to 0.4mm, 2-12c fibre ribbons...0.2-0.4 mm thickness
  • Cladding diameter: 125um
  • Coating material: UV cured resin
  • Coating removal length: Up to 35mm　

Function

  • Temperature setting: (4 positions) Approx. 80°C ~ 140°C
  • Power saving function: NORMAL MODE and POWER SAVE MODE are switchable
  • Battery level check: 4-step LED display
  • Vibration function: Vibration notifies when to remove the coating (ON/OFF switchable)
  • LED Lighting: LED lighting brightly illuminates the heater section (ON/OFF switchable)

Dimensions / Weight / Battery Capacity

  • Dimensions: 46(W) × 146(D) × 37.5(H) mm
  • Weight: Approx. 253g (including battery)
  • Battery Capacity: Nominal capacity 1940mAh (operation with BU-6A battery)

Standard Package

  • Replacement Blades: JR-7BL (1 blade each for upper and lower)
  • Battery: BU-6A
  • AC Adapter: ADC-1220S
  • AC Cord: PC-AC[*] * is vary for each regions.
  • DC Cord: PC-B(C) (for power supply from Sumitomo Electric fusion splicers)
