Sumitomo Electric aims to provide excellent fusion splicers with advanced splicing technology and our world-wide service centre network.

Fusion Splicers

High Definition
Core Aligning
fusion splicer

For high end
backbone network

NanoTune
SumiCloud
  • Splice
  • Fiber Protection
  • Battery
  • Display &
Operation
  • Shock
resistance
  • Water & Dust
Resistance

Splice


High Definition
Core Alignment
with NanoTune™

0.01dB
5 Sec.





Fiber Protection


Dual Automatic
Independent oven

8Sec.
60mm single sleeve





Battery


320 Splice

BU-16
Li-ion 10.8V 6400mAh
Smart power monitor





Display &
Operation


5.0" WVGA LCD
Touch screen







Shock
resistance


Drop from 76cm
on 5 Faces

(excluding the top face)





Water & Dust
Resistance


IP52 Equivalent

Dust test;
8 hours in a
test chamber with
circulating dust
particles smaller
than 75um

Water test;
Exposed to water
dripping at 3mm/min.
for 2.5 min. on each of
4 surfaces tilted at 15°



Storage



Internal:
200 images
10000 data

Internal + External
(SD/SDHD):
50200 images
20000 data



Help Video



Play on the display
or our web site





Automation



Fiber identification
(SMF / MMF / DSF /
NZDSF / BIF / Other)

Splice/Oven auto start





Network
Connection



FSMA:
via PC by USB

SumiCloud™ :
via smartphone
by wireless LAN



Electrode Life



6000 splices





Operating
Condition



Temperature :
-10 ~ +50 ℃

Humidity :
0 ~ 95%
(non-condensing)

Altitude :
0 ~ 6000m,
Wind velocity :
up to 15m/sec

Storage
Condition



Splicer body
Temperature :
-40 ~ +80 ℃
Humidity : 0 ~ 95%
(non-condensing)

Battery
Temperature :
-20 ~ +30 ℃
(long term storage)



Active Clad Alignment
fusion splicer

For FTTx network

NanoTune
SumiCloud
  • Splice
  • Fiber Protection
  • Battery
  • Display &
Operation
  • Shock
resistance
  • Water & Dust
Resistance

Splice


Elite Active Clad
Alignment
with NanoTune™

0.03dB
6 Sec.





Fiber Protection


Single Automatic
Oven

12Sec.
60mm single sleeve





Battery


250 Splice

BU-17
Li-ion 10.8V 4560mAh
Power monitor





Display &
Operation


4.3" WVGA LCD
Touch screen







Shock
resistance


Drop from 76cm
on 5 Faces

(excluding the top face)





Water & Dust
Resistance


IP52 Equivalent

Dust test;
8 hours in a
test chamber with
circulating dust
particles smaller
than 75um

Water test;
Exposed to water
dripping at 3mm/min.
for 2.5 min. on each of
4 surfaces tilted at 15°



Storage



Internal:
200 images
10000 data

Internal + External
(SD/SDHD):
50200 images
20000 data



Help Video



Play on the display
or our web site





Automation



Fiber identification
(SMF / MMF)

Splice/Oven auto start





Network
Connection



FSMA:
via PC by USB

SumiCloud™ :
via smartphone
by wireless LAN



Electrode Life



6000 splices





Operating
Condition



Temperature :
-10 ~ +50 ℃

Humidity :
0 ~ 95%
(non-condensing)

Altitude :
0 ~ 5000m,
Wind velocity :
up to 15m/sec

Storage
Condition



Splicer body
Temperature :
-40 ~ +80 ℃
Humidity : 0 ~ 95%
(non-condensing)

Battery
Temperature :
-20 ~ +30 ℃
(long term storage)



Handheld
fusion splicer

For FTTx network

  • Splice
  • Fiber Protection
  • Battery
  • Display &
Operation
  • Shock
resistance
  • Water & Dust
Resistance

Splice


Clad Alignment

0.05dB
11 Sec.





Fiber Protection


Single Automatic
Oven

30Sec.
60mm single sleeve





Battery


100 Splice

BU-12L
Li-ion 11.1V 3060mAh
Power monitor





Display &
Operation


3.5" LCD
Touch screen







Shock
resistance


Drop from 76cm
on the Bottom Face







Water & Dust
Resistance


IP51 Equivalent

Dust test;
8 hours in a
test chamber with
circulating dust
particles smaller
than 75um

Water test;
Exposed to vertically
dripping water at
1mm/min. for 10 min.



Storage



Internal:
200 images
10000 data

Internal + External
(SD/SDHD):
50200 images
20000 data



Help Video



Play on the display
or our web site





Automation



Splice/Oven auto start





Network
Connection



FSMA:
via PC by USB





Electrode Life



3000 splices





Operating
Condition



Temperature :
-10 ~ +50 ℃

Humidity :
0 ~ 95%
(non-condensing)

Altitude :
0 ~ 3660m,
Wind velocity :
up to 15m/sec

Storage
Condition



Splicer body
Temperature :
-40 ~ +80 ℃
Humidity : 0 ~ 95%
(non-condensing)

Battery
Temperature :
-20 ~ +30 ℃
(long term storage)

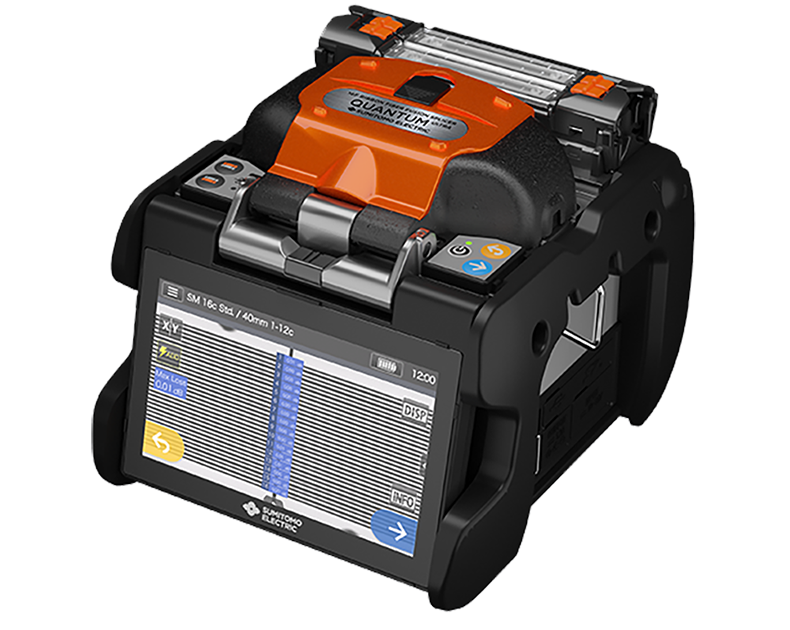

AI-powered ribbon
fusion splicer

For the ribbon cable
network in backbone,
FTTx and data center

NanoTune
SumiCloud
ACAS
  • Splice
  • Fiber Protection
  • Battery
  • Display &
Operation
  • Shock
resistance
  • Water & Dust
Resistance

Splice


12f Ribbon Splicing

0.05dB
11 Sec.





Fiber Protection


Dual Automatic
Independent oven

28Sec.
40mm ribbon sleeve





Battery


180 Splice

BU-16
Li-ion 10.8V 6400mAh
Smart power monitor





Display &
Operation


5.0" WVGA LCD
Touch screen







Shock
resistance


Drop from 76cm
on 5 Faces

(excluding the top face)





Water & Dust
Resistance


IP52 Equivalent

Dust test;
8 hours in a
test chamber with
circulating dust
particles smaller
than 75um

Water test;
Exposed to water
dripping at 3mm/min.
for 2.5 min. on each of
4 surfaces tilted at 15°



Storage



Internal:
200 images
10000 data

Internal + External
(SD/SDHD):
50200 images
20000 data



Help Video



Play on the display
or our web site





Automation



Enhanced-ACAS

Fiber count

Splice/Oven auto start





Network
Connection



FSMA:
via PC by USB

SumiCloud™ :
via smartphone
by wireless LAN



Electrode Life



1500 splices





Operating
Condition



Temperature :
-10 ~ +50 ℃

Humidity :
0 ~ 95%
(non-condensing)

Altitude :
0 ~ 3660m,
Wind velocity :
up to 15m/sec

Storage
Condition



Splicer body
Temperature :
-40 ~ +80 ℃
Humidity : 0 ~ 95%
(non-condensing)

Battery
Temperature :
-20 ~ +30 ℃
(long term storage)
