| SC | LC | FC | ST | MPO | |
|---|---|---|---|---|---|
 |
 |
 |
 |
 |
|
| Interface Standard |
IEC 61754-4 | IEC61754-20 | IEC 61754-13 | IEC 61754-2 | IEC 61754-7-1 |
| Fibre Type and Polishing Type |
SM.APC, SM.UPC MM50(OM2).PC, MM50(OM3/OM4).PC MM62.5(OM1).PC |
SM.APC MM50.Flat PC |
|||
| Insertion Loss (Against master plug) |
SMF: Ave. 0.20dB, Max 0.30dB MMF: Ave. 0.10dB, Max 0.25dB |
SMF (Std Loss): Max 0.75dB SMF (Low Loss): Max 0.4dB MMF (Low Loss): Max 0.4dB |
|||
| Return Loss (Against master plug) |
SMF: ≧60dB(APC), ≧55dB(UPC) MMF: ≧30dB(PC) |
SMF: ≥55dB | |||
| Temperature Conditions |
Installation: -5 to 45°C, Operation: -40 to 75°C Transport: -40 to 50°C, Storage: -40 to 50°C |
||||
| Qualification | IEC 61753-1 GR-326-CORE, GR-1081-CORE TIA/EIA-568.3-D |
GR-1435-CORE GR-1081-CORE TIA/EIA-568.3-D |
|||
Lynx-CustomFit™ is designed to meet any application and customer’s needs.
Please feel free to contact us if you need any information about Lynx-CustomFit™ .

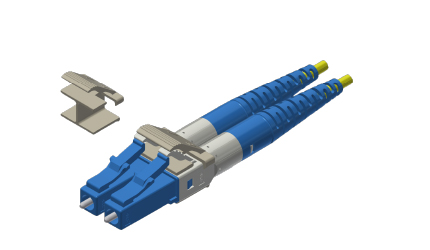

| SC | LC | ST | FC | Duplex LC Clip* |
MPO | |
|---|---|---|---|---|---|---|
| 250μm fibre / 900μm Tight Buffer / 900μm Loose Tube/900μm Loose Buffer |  |
|
|
|
|
|

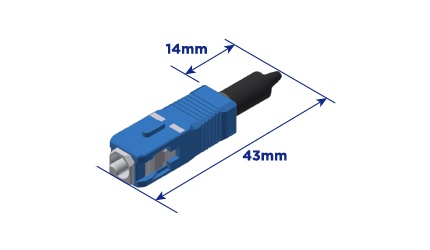

| 250μm fibre / 900μm Tight Buffer (Short Boot*) | |
|
|
|||
| 1.6mm / 2mm / 3mm Jacketed cable |
|
|
|
|
|
|
| 2mm Loose Tube cable | |
|
|
|
||
| 4.8mm Jacketed cable | APC Available |
|||||
| 12 fibre / 8 fibre Bare Ribbon, Ribbon Cord, 3mm Round Cord |
|
*Please find out the information here.
Fibre Holders
| Connector Type |
Single Fibre Connector (Lynx-CustomFit™ Ver.3) |
MPO Connector (Lynx-CustomFit™ Ver.2) |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| Type | 250μm fibre |
900μm Tight Buffer |
900μm Loose Tube/ 900μm Loose Buffer | 2mm cord with 900μm Tight Buffer |
2mm cord with 900μm Loose Buffer |
3mm cord with 900μm Tight Buffer |
Bare Ribbon | Round Cord | Ribbon Cord |
| Part No. (Left-hand side): For Fibre/Cord Set |
FHS-025 or LYNX-S-LB |
FHS-09 or LYNX-S |
LYNX-S-LB | LYNX-S | LYNX-S-LB | LYNX-S | 12-fibre: FHM-12V 8-fibre: FHM-8 | ||
| Part No. (Right-hand side): For ferrule sub-assembly set |
LYNX-C-PLS (Plastic, Standard) *1 or LYNX-C (Metal, Option) |
LYNX2-C(MT)
(Plastic, Standard) *2 or LYNX2-C(MT) Metal (Metal, Option) |
|||||||
See catalogue for Assembly Tools
